Mobile irrigation

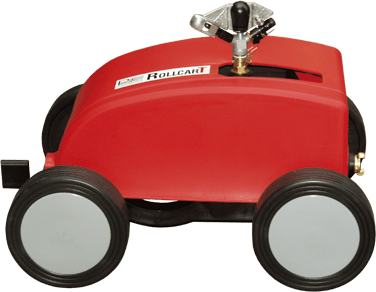

RollcarT-V

Applications:

Used mainly for large sized green areas, sports fields, nurseries and gardens.

Downloads: RollcarT-V Sellsheet Operating manual RollcarT-V Spare parts list ROLLCART-V-3

Videos:

RollcarT-V Video

Technical specifications

Travelling speed:: 10 to 20 m/h
Op pressure:: min 4,0 bar at unit
Flow rate:: 3,00 m³/h
Irrrigation width:: 28 to 36 m
Irrigation lenght:: 120 m
Material:: Alu, brass, durable engineering plastic
Dimensions:: 75 x 75 x 80 cm
Total weight:: 27,0 kg

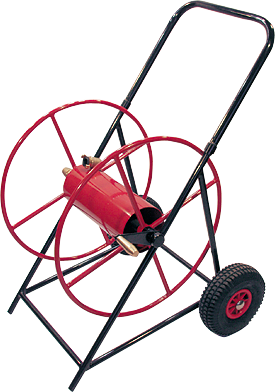

HoseCar

private gardens, parks,
sports facilities and horticulture.

Downloads: Leaflet HoseCar Spare parts list HoseCar

Technical specifications

Dimensions:: 77 x 47 x 40 cm
Total weight:: Net weight: approx. 24,0 kg Weight with 100 m 1” hose: approx. 69,0 kg Weight with filled 1” hose: approx. 117,0 kg

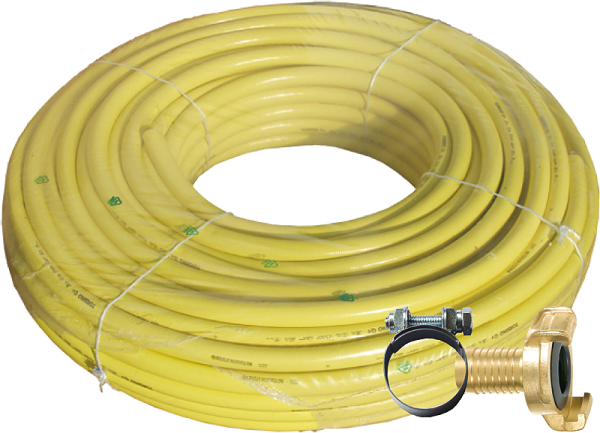

Hose set

Hose for mobile irrigation with the RollcarT-V.
Complete with MS-coupling and hose clamp.

Downloads: Leaflet RollcarT-Flyer-Set

Technical specifications

Size:: 1"
Length:: 100 m
Op pressure:: 10 bar
Version:: with textile fabric
Material:: PVC

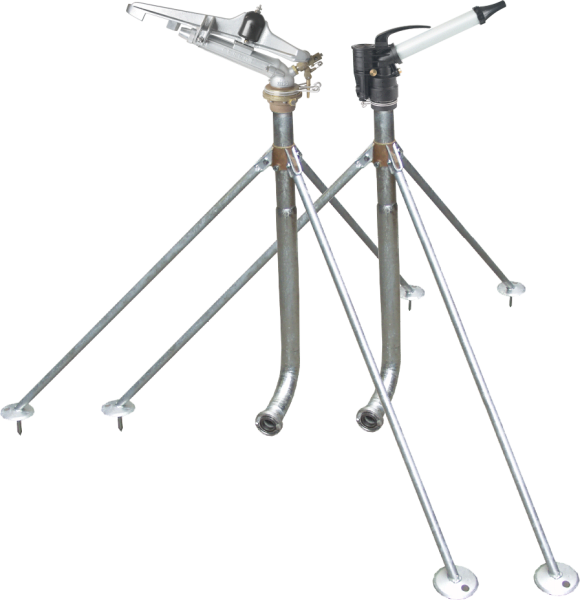

Large Area Sprinkler on Tripod

Mobile irrigation for sports fields Large area sprinklers on tripod
Impact sprinkler ZN 23 W or pisten drive sprinkler P2S
Tripod inlet 2" male thread or Storz C-coupling

Downloads: Data sheet tripod Data sheet P2-S Data sheet ZN 23

Technical specifications

Op pressure:: 3,0 - 7,0 bar
Flow rate:: 12,00 - 61,00 m³/h
Inlet:: 2 1/2“ male thread
