TRITON-series – Pop-up sprinkler with impact drive

The Irrigation Top Athlete

Whether prior to the match or during halftime, the Triton series can irrigate an entire pitch or field in next to no time, and with almost any water quality. Do you use greywater or rainwater? Either way, it is no problem for the Triton series. It boasts tool-free adjustment and, of course, maintenance from the top – take, for instance, the extremely easy-to-remove Turf Cup with natural turf insert.

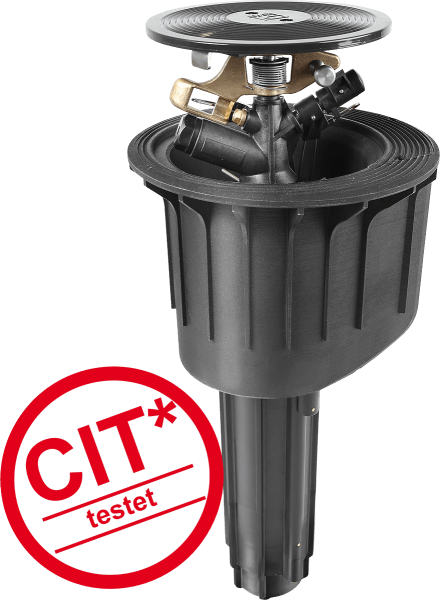

TRITON-L

Technical specifications
Casting range:
19,0 - 38,0 m
Nozzle variations:
7,0 - 17,5 mm
No. of nozzles:
with 2 and 3 nozzles
Op pressure:
3,0 - 8,0 bar
Flow rate:
4,6 - 28,6 m³/h
Trajectory:
22°
Inlet:
1 1/2" female thread Inlet bushing made of brass
CIT nozzle size:
12 mm
CIT formation:
30 x 26 m
CIT value:
CU 93 - DU 89

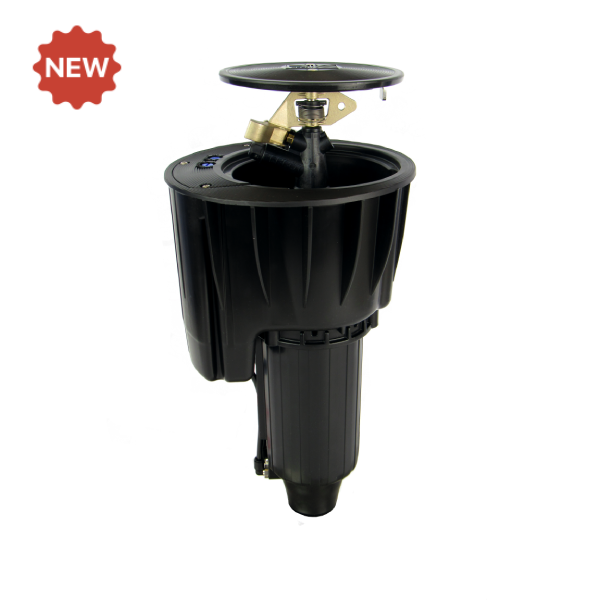

TRITON-M

Application:

Golf-greens, riding arenas, sports fields (goal area), parks

Technical specifications
Casting Range:
14,5 - 21,6 m
Flow:
2,07 - 8,86 m³/h
Pressure:
3,0 - 7,0 bar
Nozzle size:
4,2 - 8,0 mm
Nozzles:
with 2 or 3 nozzles
Trajectory:
22°
Inlet:
1“ female

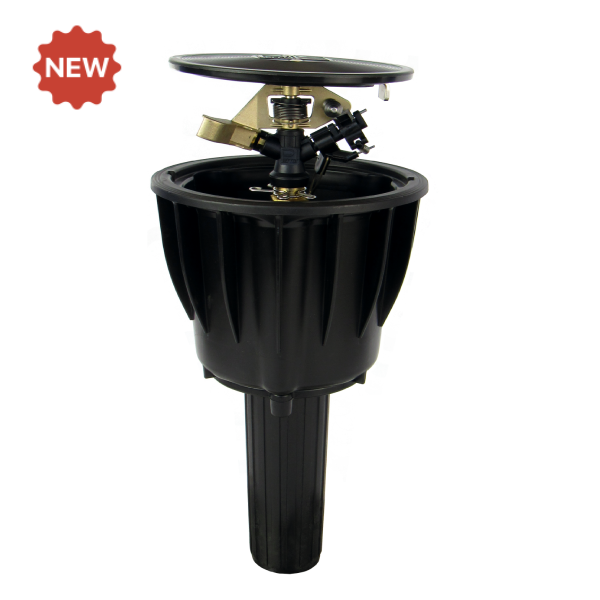

TRITON-S

Application

Golf teeing grounds, tennis courts, parks, riding arenas, private gardens

Technical specifications
Casting Range:
12 - 14,5 m
Flow:
0,9 - 1,8 m³/h
Pressure:
2,5 - 6,0 bar
Nozzle size:
4,0 - 4,5 mm
Nozzles:
1 nozzle
Trajectory:
22°
Inlet
12 IG / 3/4" IG (Tennis)

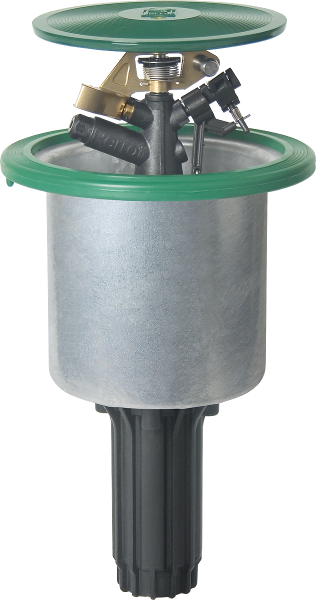

LVZE

Application areas

Golf green, parks, riding facilities,
sports fields (goal area)

Technical specifications
Casting range:
14,5 - 21,6 m
Nozzle variations:
4,2 - 8,0 mm
No. of nozzles:
with 2 and 3 nozzles
Op pressure:
3,0 - 7,0 bar
Flow rate:
2,07 - 8,86 m³/h
Trajectory:
22°
Inlet:
1“ female

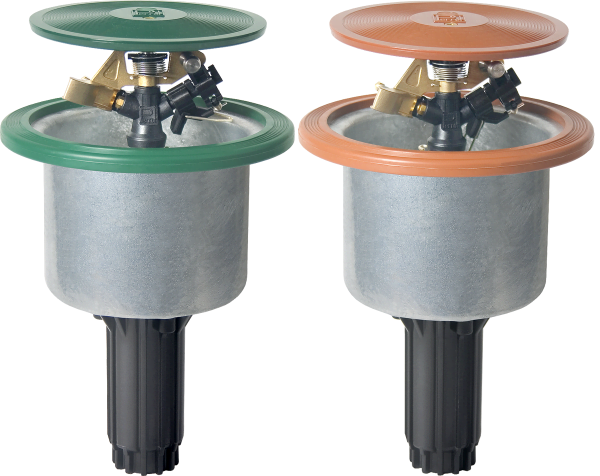

LVZA

Application areas

golf tee, tennis courts, parks, private
gardens, riding facilities

Technical specifications
Casting range:
12,0 - 14,5 m
Nozzle variations:
4,0 - 4,5 mm
Op pressure:
2,5 - 6,0 bar
Flow rate:
0,90 - 1,80 m³/h
Trajectory:
22°
Inlet:
3/4“ female / 1“ female type H

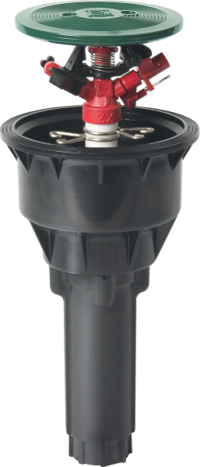

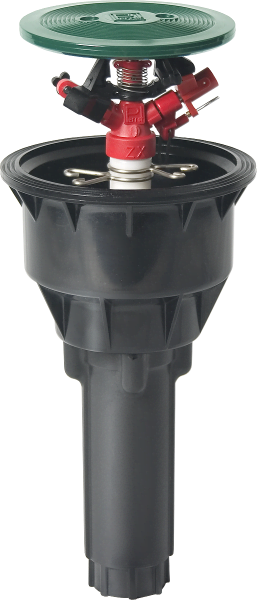

LVZX

Application areas

private gardens, parks, lawn strips
along the roads

Technical specifications
Casting range:
8,9 - 11,4 m
Nozzle variations:
2,8 - 3,5 mm
Op pressure:
2,5 - 5,0 bar
Flow rate:
0,44 - 0,97 m³/h
Trajectory:
30°
Inlet:
3/4“ female
